Fleksibel kabelkæde til skydedøre

Smart and elegant solution for sliding doors when power is required on the movable door itself. For example to a door interlock switch. Especially designed for double sliding doors locked in the centre, with or without an overhead rail, where a fixed post to attach a cabling is missing. A number...

Læs mere

Få dit tilbud nu

Navn *

Telefon

Country

E-mail *

Emne *

Meddelelse *

I have taken note of Axelent's data protection policy, which you can read here.

I agree that Axelent will process my personal information to contact me.

Design sikkerhedsløsninger

Design dine sikkerhedsløsninger i vores tegneværktøj, Safety Design

Vælg CAD-format

1/2

2/2

Modeller

Højde 2000 mm

11 Artikler

Artikel	Beskrivelse
T21-200-001	Cable chain kit 8mm, sliding door H=2000mm, 0-1500mm	1
T21-200-002	Cable chain kit 8mm, sliding door H=2X00mm, D3U1 1001-1400mm	1
T21-200-003	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 1001-1500mm	1
T21-200-004	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 1401-2200mm	1
T21-200-005	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2001-3100mm	1
T21-200-006	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3101-3600mm	1
T21-200-007	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2x1001-2x1500	1
T21-200-008	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3x1001-3x1500mm	1
T21-200-009	Cable chain kit 8mm, sliding door H=2000mm, movable alu rail	1
T21-250-010	Cable chain 8mm kit, D56-XXX300A & D57-XXX600A
T21-275-010	Cable chain 8mm, D56-XXX200A/B & D57-XXX400A/B

Se mere Se mindre

Højde 2300 mm

11 Artikler

Artikel	Beskrivelse
T21-230-001	Cable chain kit 8mm, sliding door H=2300mm, 0-1500mm	1
T21-230-002	Cable chain kit 8mm, sliding door H=2X00mm, D3U1 1001-1400mm	1
T21-230-003	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 1001-1500mm	1
T21-230-004	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 1401-2200mm	1
T21-230-005	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2001-3100mm	1
T21-230-006	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3101-3600mm	1
T21-230-007	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2x1001-2x1500	1
T21-230-008	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3x1001-3x1500mm	1
T21-230-009	Cable chain kit 8mm, sliding door H=2300mm, movable alu rail	1
T21-250-010	Cable chain 8mm kit, D56-XXX300A & D57-XXX600A
T21-275-010	Cable chain 8mm, D56-XXX200A/B & D57-XXX400A/B

Se mere Se mindre

Højde 2500 mm

11 Artikler

Artikel	Beskrivelse
T21-250-001	Cable chain kit 8mm, sliding door H=2500mm, 0-1500mm	1
T21-250-002	Cable chain kit 8mm, sliding door H=2X00mm, D3U1 1001-1400mm	1
T21-250-003	Cable chain kit 8mm, sliding door H=2X00mm, D3U1 1001-1400mm T20-250-003	1
T21-250-004	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 1401-2200mm	1
T21-250-005	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2001-3100mm	1
T21-250-006	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3101-3600mm	1
T21-250-007	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2x1001-2x1500	1
T21-250-008	Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3x1001-3x1500mm	1
T21-250-009	Cable chain kit 8mm, sliding door H=2500mm, movable alu rail	1
T21-250-010	Cable chain 8mm kit, D56-XXX300A & D57-XXX600A
T21-275-010	Cable chain 8mm, D56-XXX200A/B & D57-XXX400A/B

Se mere Se mindre

Downloads

Fleksibel kabelkæde til skydedøre

Produktinformation

Flexible cable chain for sliding doors

Produktinformation

X-Guard Technical

Brochure

Produktinformation

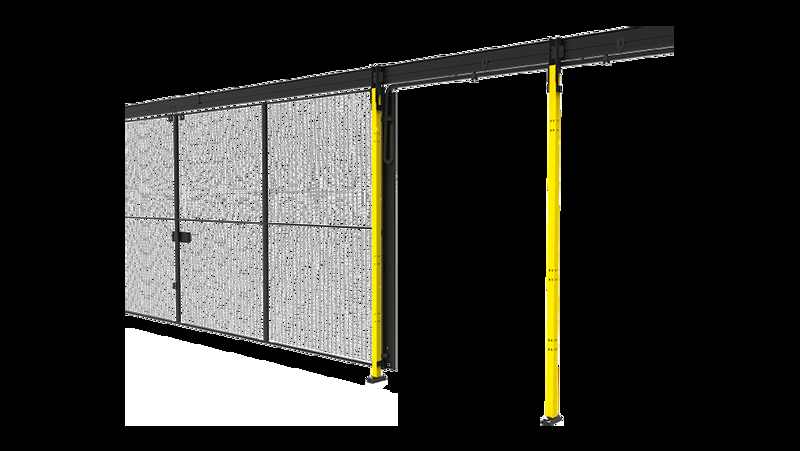

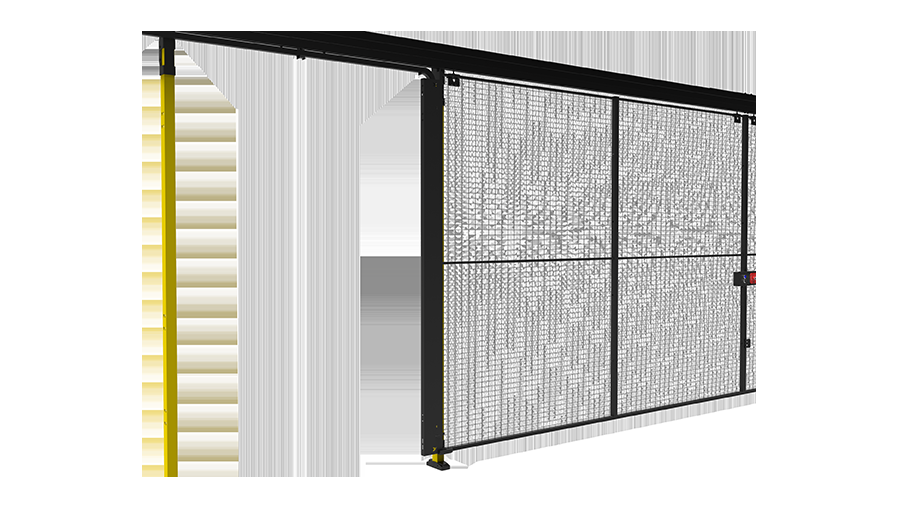

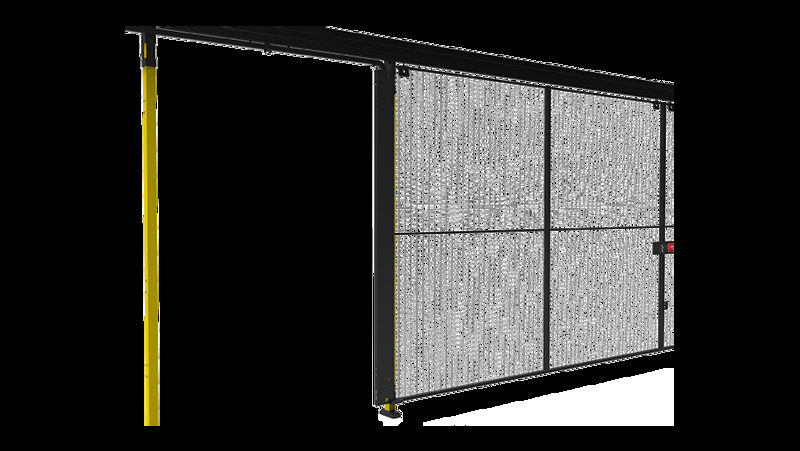

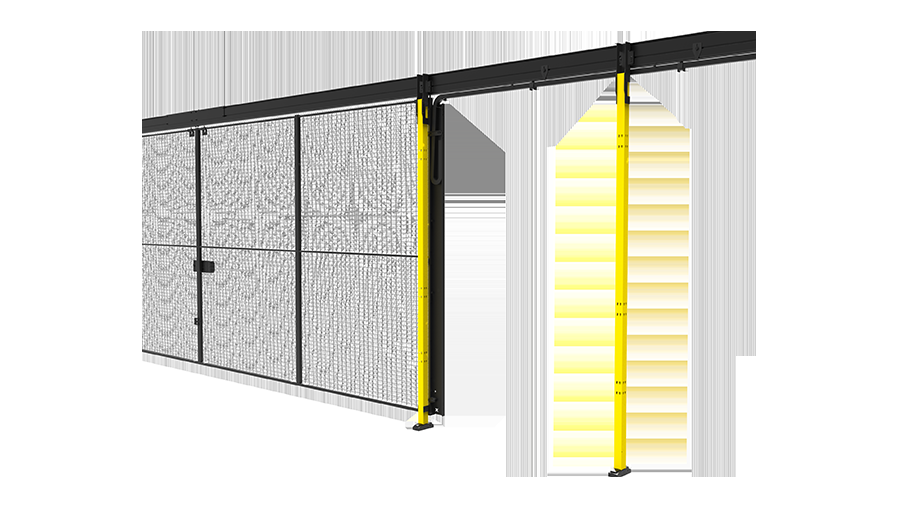

Smart and elegant solution for sliding doors when power is required on the movable door itself.

For example to a door interlock switch. Especially designed for double sliding doors locked in the centre, with or without an overhead rail, where a fixed post to attach a cabling is missing. A number of kits have been created depending on the system height, type of door and requested size of the opening. See list of all combinations and article no.

Available for every height (not 1400 mm). The limit of the cable diameter is set to 8 mm.

Note, in case of no continuing panel next to the door, the kit cause a reduction of the max. door opening, at least 182 mm.

Se mere Se mindre
