Fleksibel kabelkæde til skydedøre

3D

Smart and elegant solution for sliding doors when power is required on the movable door itself. For example to a door interlock switch. Especially designed for double sliding doors locked in the centre, with or without an overhead rail, where a fixed post to attach a cabling is missing. A number...

Læs mere
Få dit tilbud nu
Design sikkerhedsløsninger

Design dine sikkerhedsløsninger i vores tegneværktøj, Safety Design

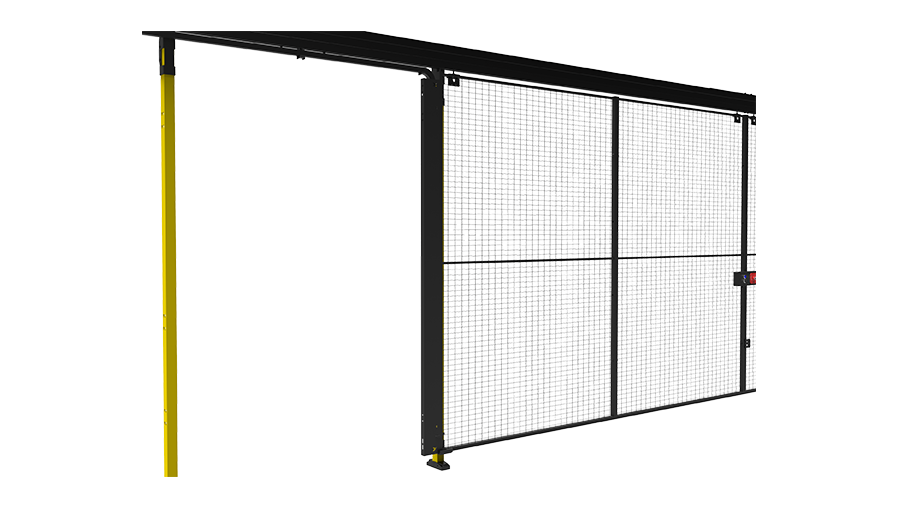

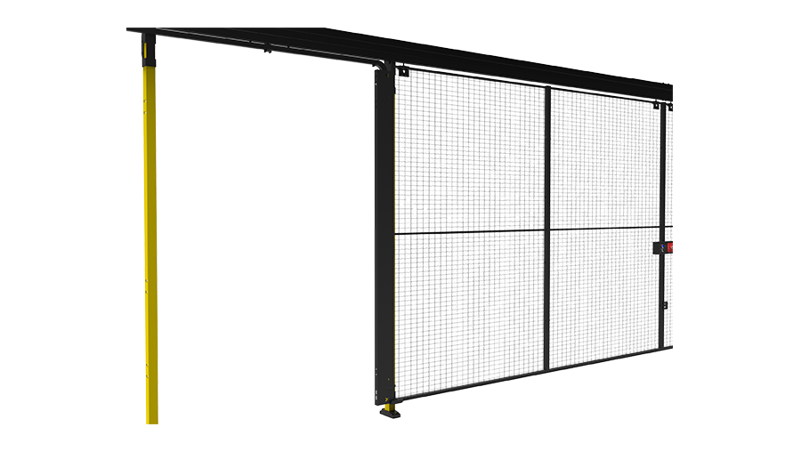

Flexible cable chain

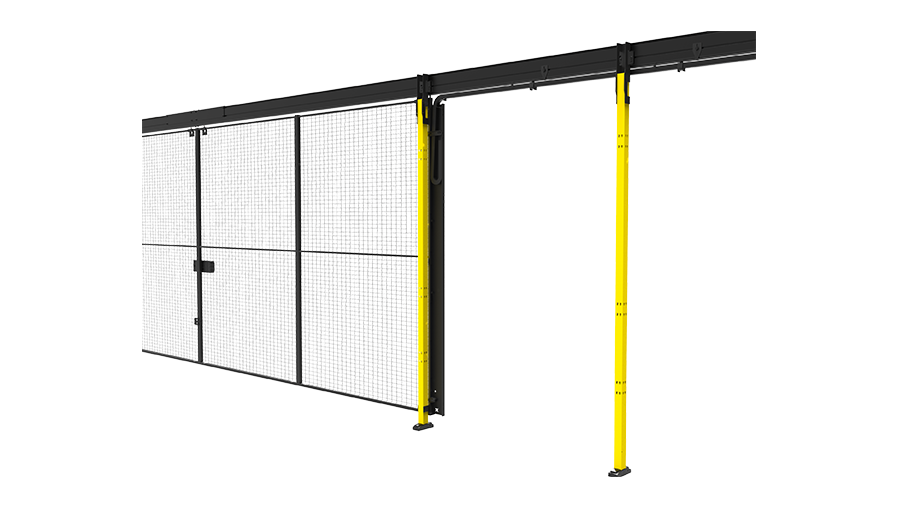

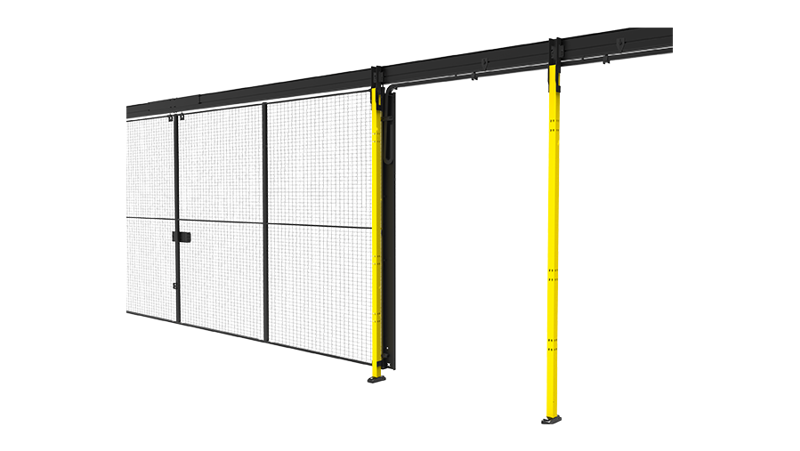

Fleicble cable chain behind
Vælg CAD-format
1/2 Flexible cable chain 2/2 Fleicble cable chain behind

Modeller

  • Højde 2000 mm

    9 Artikler
    CAD Artikel Beskrivelse
    		T20-200-001 Cable chain kit 8mm, sliding door H=2X00mm, 0-1000mm
    1
    		T20-200-002 Cable chain kit 8mm, sliding door H=2X00mm, D3U1 1001-1400mm
    1
    		T20-200-003 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 1001-1500mm
    1
    		T20-200-004 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 1401-2200mm
    1
    		T20-200-005 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2001-3100mm
    1
    		T20-200-006 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3101-3600mm
    1
    		T20-200-007 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2x1001-2x1500
    1
    		T20-200-008 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3x1001-3x1500mm
    1
    		T20-200-009 Cable chain kit 8mm, sliding door H=2000mm, movable alu rail
    1
    Se mere Se mindre

  • Højde 2300 mm

    9 Artikler
    CAD Artikel Beskrivelse
    		T20-230-001 Cable chain kit 8mm, sliding door H=2X00mm, 0-1400mm
    1
    		T20-230-002 Cable chain kit 8mm, sliding door H=2X00mm, D3U1 1001-1400mm
    1
    		T20-230-003 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 1001-1500mm
    1
    		T20-230-004 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 1401-2200mm
    1
    		T20-230-005 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2001-3100mm
    1
    		T20-230-006 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3101-3600mm
    1
    		T20-230-007 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2x1001-2x1500
    1
    		T20-230-008 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3x1001-3x1500mm
    1
    		T20-230-009 Cable chain kit 8mm, sliding door H=2300mm, movable alu rail
    1
    Se mere Se mindre

  • Højde 2500 mm

    9 Artikler
    CAD Artikel Beskrivelse
    		T20-250-001 Cable chain kit 8mm, sliding door H=2X00mm, 0-1400mm
    1
    		T20-250-002 Cable chain kit 8mm, sliding door H=2X00mm, D3U1 1001-1400mm
    1
    		T20-250-003 Cable chain kit 8mm, sliding door H=2X00mm, D3U1 1001-1400mm T20-250-003
    1
    		T20-250-004 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 1401-2200mm
    1
    		T20-250-005 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2001-3100mm
    1
    		T20-250-006 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3101-3600mm
    1
    		T20-250-007 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 2x1001-2x1500
    1
    		T20-250-008 Cable chain kit 8mm, sliding door H=2X00mm, alu rail 3x1001-3x1500mm
    1
    		T20-250-009 Cable chain kit 8mm, sliding door H=2500mm, movable alu rail
    1
    Se mere Se mindre

  • Højde 2750 mm

    6 Artikler
    CAD Artikel Beskrivelse
    		T20-275-001 Cable chain kit 8mm, sliding door H=2755mm, 0-1000mm
    1
    		T20-275-002 Cable chain kit 8mm, sliding door H=2755mm, D3U1 1001-1400mm
    1
    		T20-275-003 Cable chain kit 8mm, sliding door H=2755mm, alu rail 1001-1500mm
    1
    		T20-275-004 Cable chain kit 8mm, sliding door H=2755mm, alu rail 1401-2200mm
    1
    		T20-275-005 Cable chain kit 8mm, sliding door H=2755mm, alu rail 2001-3100mm
    1
    		T20-275-006 Cable chain kit 8mm, sliding door H=2755mm, alu rail 3101-3600mm
    1
    Se mere Se mindre

  • Højde 3055 mm

    6 Artikler
    CAD Artikel Beskrivelse
    		T20-305-001 Cable chain kit 8mm, sliding door H=3055mm, 0-1000mm
    1
    		T20-305-002 Cable chain kit 8mm, sliding door H=3055mm, D3U1 1001-1400mm
    1
    		T20-305-003 Cable chain kit 8mm, sliding door H=3055mm, alu rail 1001-1500mm
    1
    		T20-305-004 Cable chain kit 8mm, sliding door H=3055mm, alu rail 1401-2200mm
    1
    		T20-305-005 Cable chain kit 8mm, sliding door H=3055mm, alu rail 2001-3100mm
    1
    		T20-305-006 Cable chain kit 8mm, sliding door H=3055mm, alu rail 3101-3600mm
    1
    Se mere Se mindre

Downloads

Flexible cable chain for sliding doors

Produktinformation

X-Guard Technical

Brochure

Produktinformation

Smart and elegant solution for sliding doors when power is required on the movable door itself.

For example to a door interlock switch. Especially designed for double sliding doors locked in the centre, with or without an overhead rail, where a fixed post to attach a cabling is missing. A number of kits have been created depending on the system height, type of door and requested size of the opening. See list of all combinations and article no.

Available for every height (not 1400 mm). The limit of the cable diameter is set to 8 mm.

Note, in case of no continuing panel next to the door, the kit cause a reduction of the max. door opening, at least 182 mm.

Se mere Se mindre
