Tilbehør

X-Roll-Up

Axelent’s X-Roll-up is an excellent versatile alternative to doors where only a partial opening is required. For the implementation at manual workstations X-Roll-up is an ideal application for an effective and economical solution.

Få dit tilbud nu
Design sikkerhedsløsninger

Design dine sikkerhedsløsninger i vores tegneværktøj, Safety Design

Modeller

CAD Artikel Beskrivelse Bredde (mm)
S-0145-15 post H: 2000 mm / 930 mm / 830 mm 800
S-0145-16 post H: 2000 / 1130 / 1030 1000
S-0145-17 Post H: 2000 / 1330 / 1230 1200
S-0145-18 Post H: 2300 / 930 / 830 800
S-0145-19 Post H: 2300 / 1130 / 1030 1000
S-0145-20 Post H: 2300 / 1330 / 1230 1200

Downloads

X-Roll-Up

Produktinformation

X-Guard X-Roll-up

Ark

X-Guard Technical

Brochure

Produktinformation

Axelent’s X-Roll-up is an excellent versatile alternative to doors where only a partial opening is required. For the implementation at manual workstations X-Roll-up is an ideal application for an effective and economical solution.

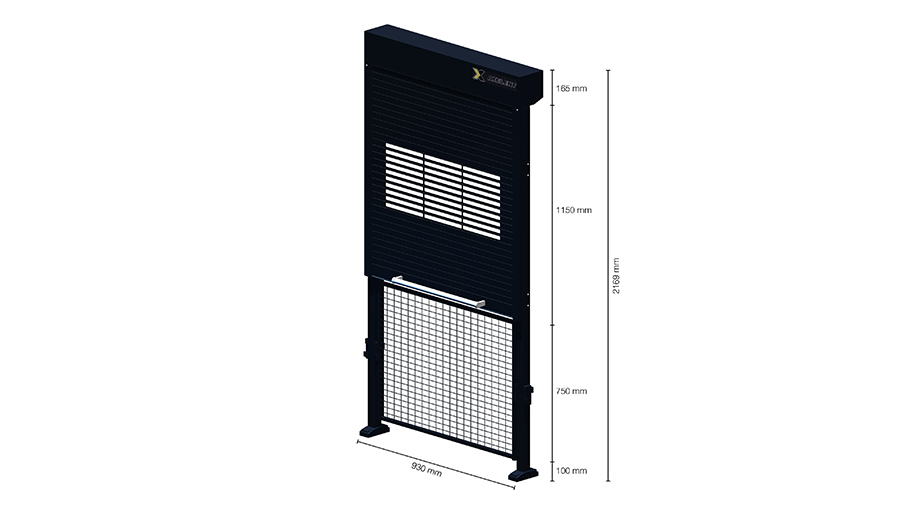

The manual roller door consists of a modular system with integrated spring loaded shaft and is available as standard in three widths and two heights. X-Roll-up wraps the aluminium rolling door during opening onto a shaft in the box at the top.

X-Roll-up is offered like a kit (including mounting material). Posts and wall section needs to be ordered separately. Integration into the X-Guard system is easy.

Heights: 2000 mm (2185 mm incl. top box) and 2300 mm (2485 mm incl. top box). Available in RAL 9011 (other colours available upon request).
