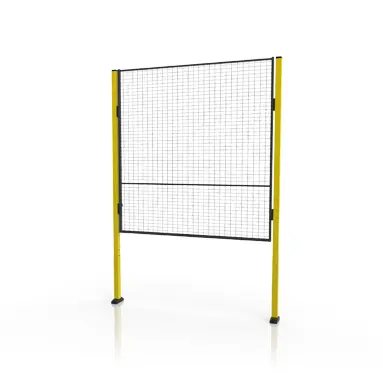

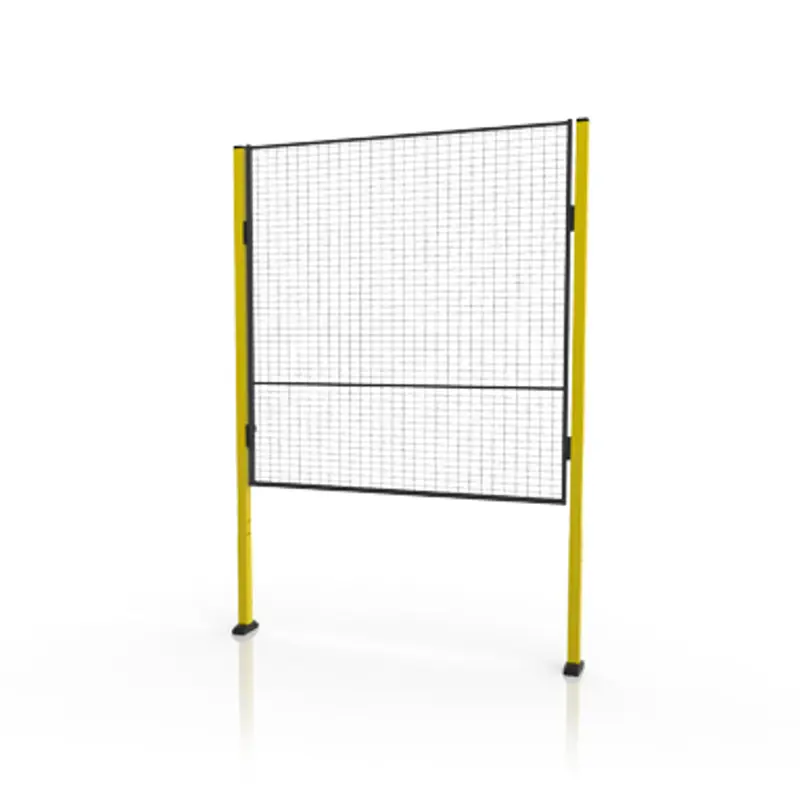

Panels may need to be cut to precise heights and widths in some environments. The X-Guard cutting pack can be used to help you cut panels and is available in both vertical and horizontal versions.

Læs mere
Få dit tilbud nu

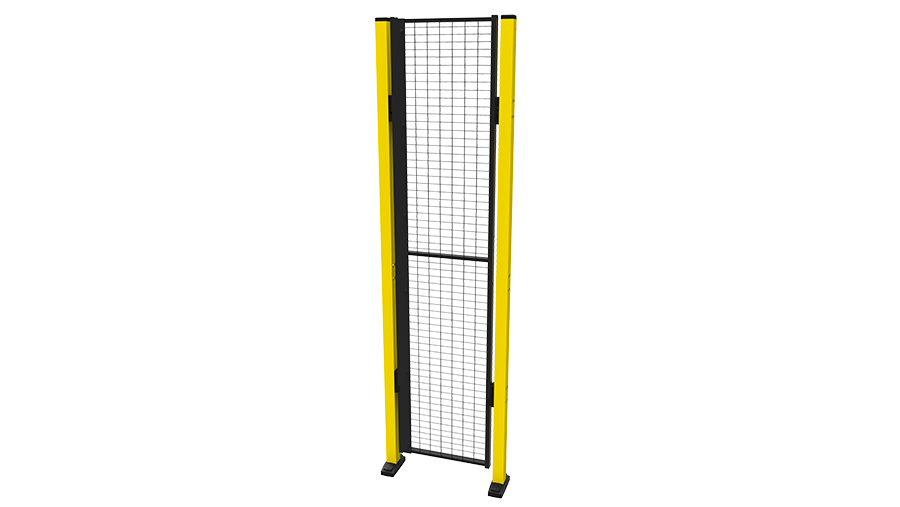

Cutting package
Cutting package

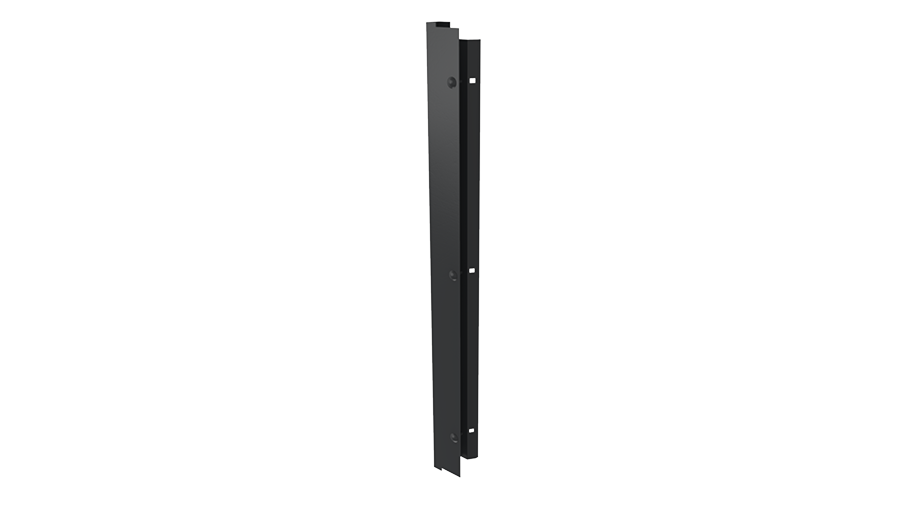

KVC-3-075 Cutting package

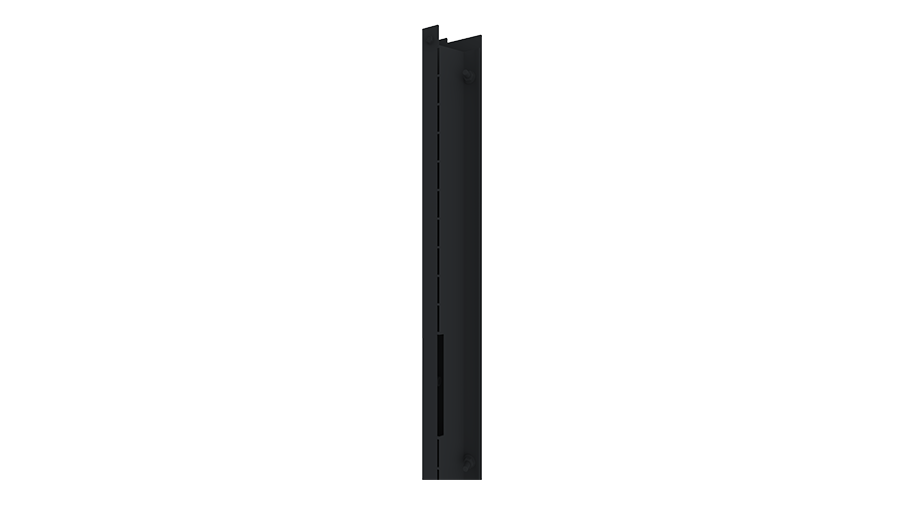

KVC-3-220 Cutting package

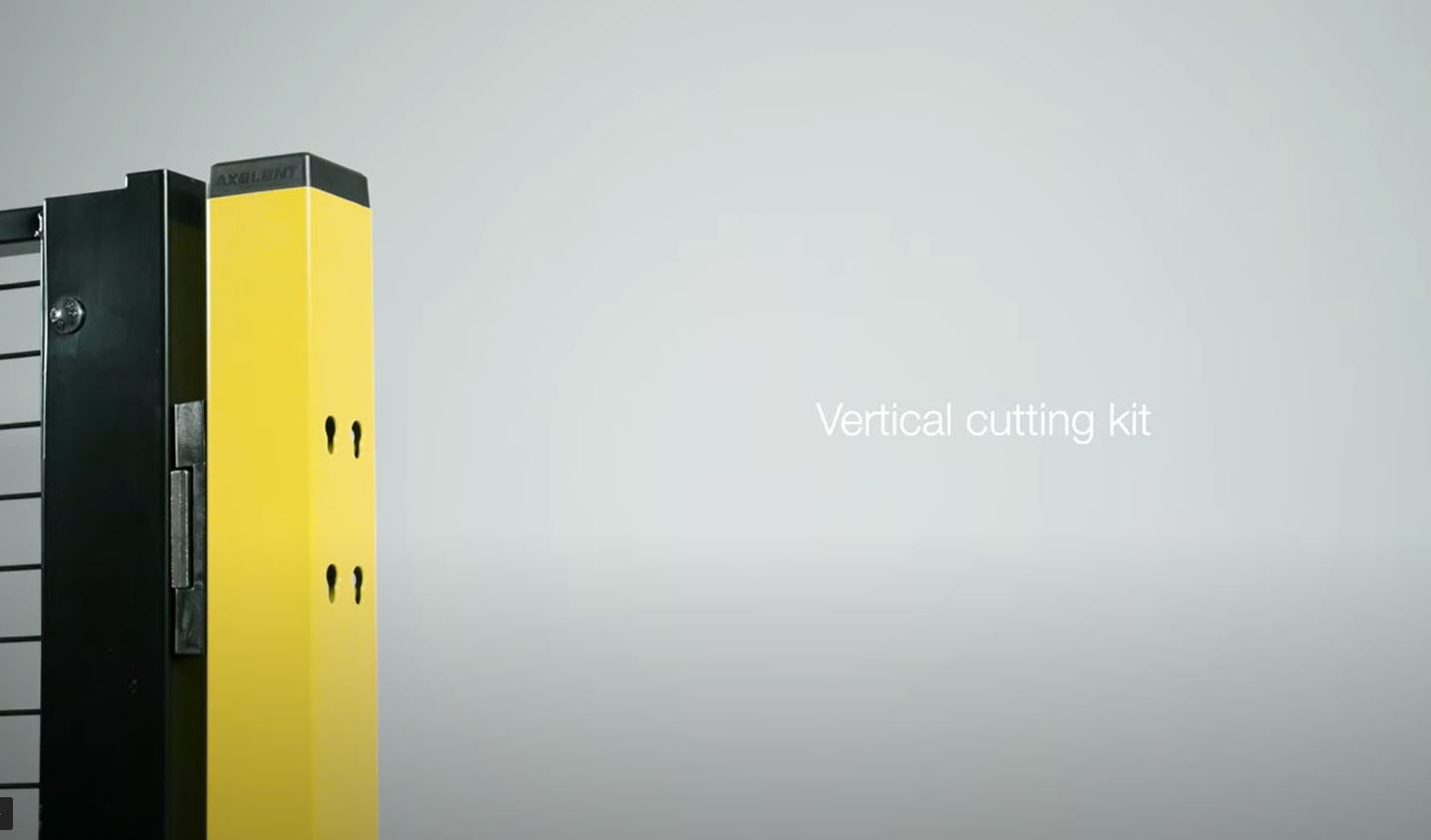

axelent mounting video vertuical cutting cit
Vælg CAD-format
Cutting package Cutting package Cutting package Cutting package axelent mounting video vertuical cutting cit

Modeller

  • Lodret

    8 Artikler
    CAD Artikel Beskrivelse Højde (mm) Farve
    		KVC-3-075 Vertical, X-Guard Classic 750 Grafitsort (RAL 9011)
    1 1
    		KVL-3-130 Vertical, X-Guard Lite 1300 Grafitsort (RAL 9011)
    1
    		KVC-3-130 Vertical, X-Guard Classic 1300 Grafitsort (RAL 9011)
    1
    		KVL-3-190 Vertical, X-Guard Lite 1900 Grafitsort (RAL 9011)
    1
    		KVC-3-190 Vertical, X-Guard Classic 1900 Grafitsort (RAL 9011)
    1
    		KVL-3-220 Vertical, X-Guard Lite 2200 Grafitsort (RAL 9011)
    1
    		KVC-3-220 Vertical, X-Guard Classic 2200 Grafitsort (RAL 9011)
    1 1
    		KVC-3-240 Vertical, X-Guard Classic 2400 Grafitsort (RAL 9011)
    1
    Se mere Se mindre

  • Vandret

    3 Artikler
    CAD Artikel Beskrivelse Maks. bredde (mm) Farve
    		KH-3-150 Horizontal, incl. fittings K1-01 1500 Grafitsort (RAL 9011)
    1
    		KH-3-150B Horizontal, excl. fittings K1-01 1500 Grafitsort (RAL 9011)
    1
    		KHE-3-150 Skæringspakke 19x19 vandret 1500 Grafitsort (RAL 9011)
    Se mere Se mindre

Downloads

X-Guard Cutting Package

Produktinformation

X-Guard Technical

Brochure

Tekniske specifikationer

Panels may need to be cut to precise heights and widths in some environments. The X-Guard cutting pack can be used to help you cut panels and is available in both vertical and horizontal versions.

The vertical comes in four heights; 750, 1300, 1900 and 2200 mm. The horizontal only comes in 1500 mm but is compatible with all widths and is available with or without attachments to allow unrestricted positioning. The standard cutting pack colour is black (RAL 9011) but customised colours are available upon request.

A rubber strip can be fitted to provide a soft and neat edge where mesh panels have been cut.
