X-Protect

Pullerter

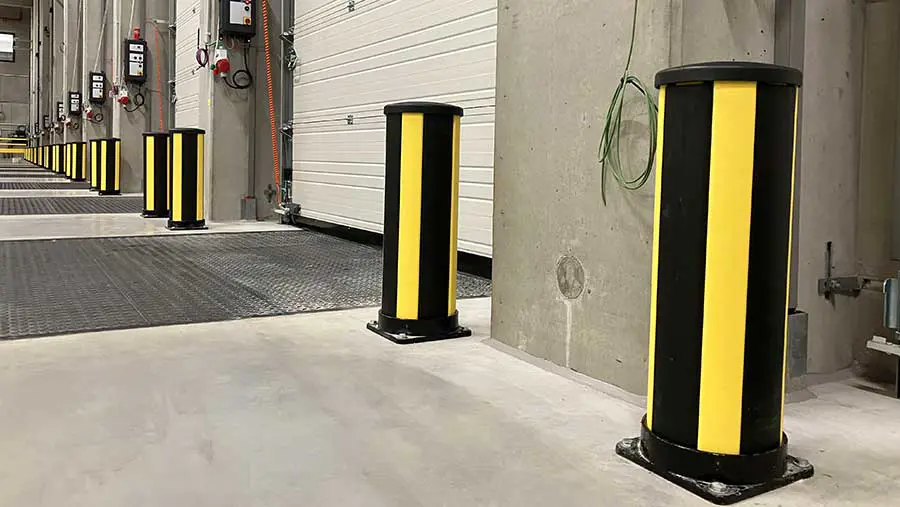

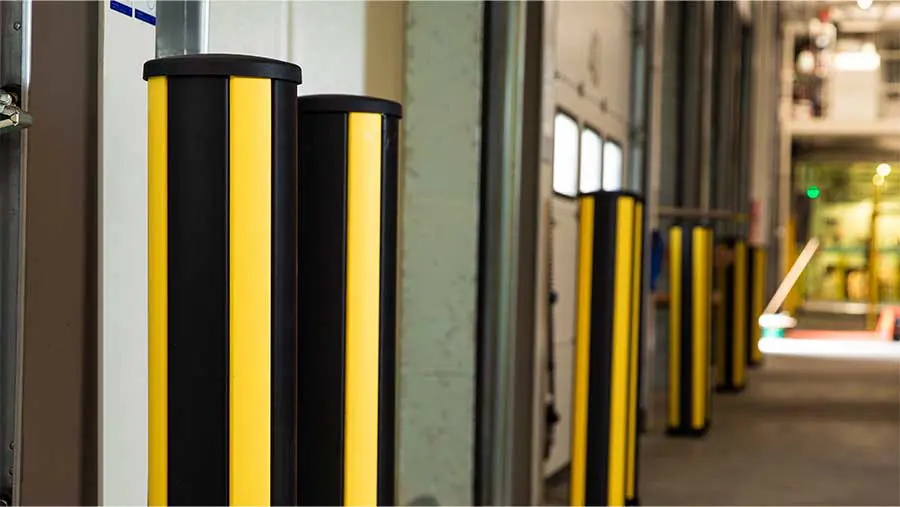

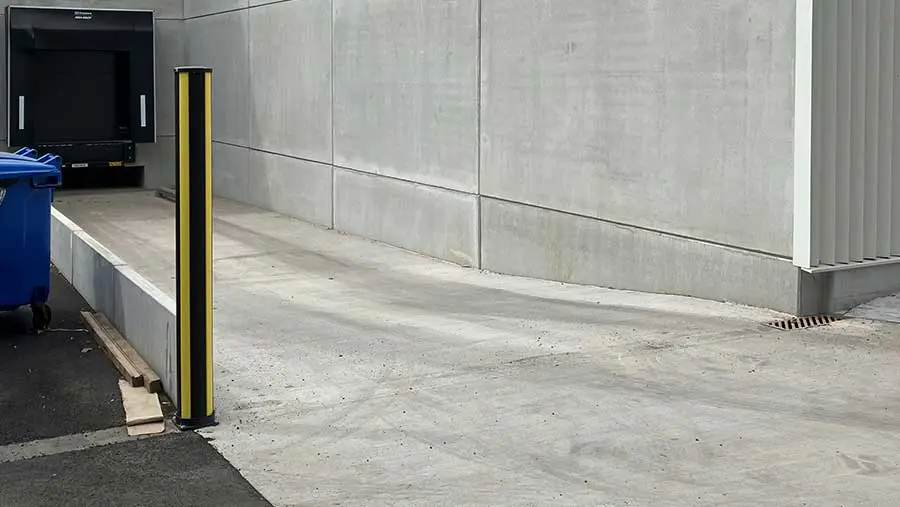

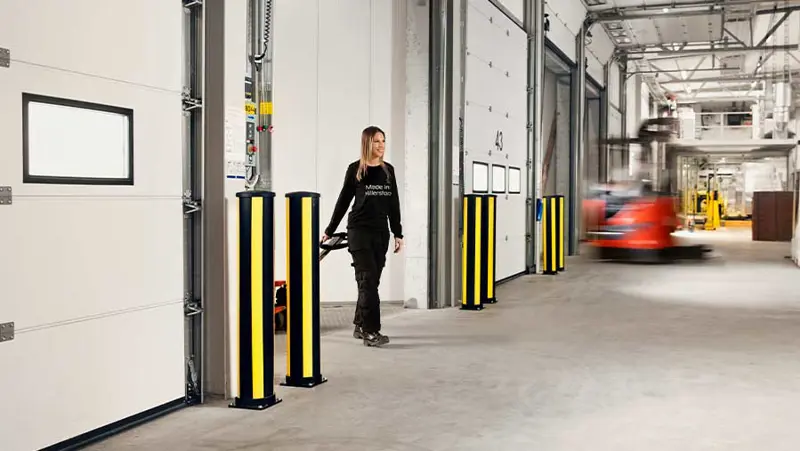

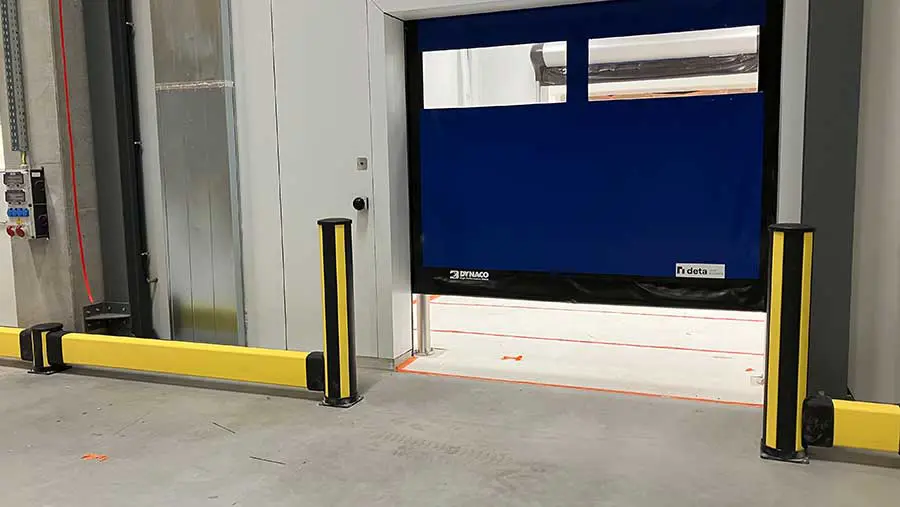

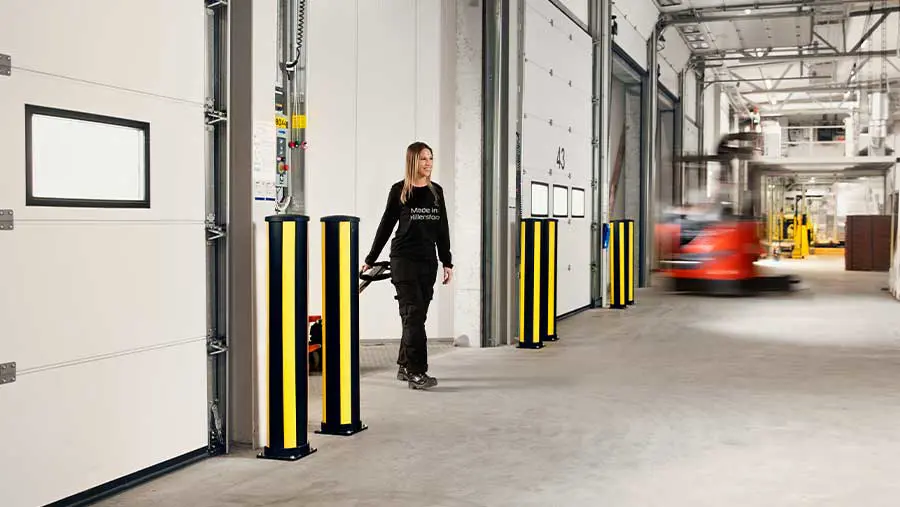

X-Protect Bollards safeguard corners, doorways and equipment from vehicle impacts. The black and yellow colour scheme enhances visibility and helps direct forklift traffic, creating safer, well-organised industrial routes.

Få dit tilbud nu
Design sikkerhedsløsninger

Design dine sikkerhedsløsninger i vores tegneværktøj, Safety Design

Modeller

  • Essential Bollards

    3 Artikler
    CAD Artikel Højde (mm) Farve
    BEP0-088-0000 880 Zinkgul (RAL 1018)
    Grafitsort (RAL 9011)
    3
    BEP0-062-0000 620 Zinkgul (RAL 1018)
    Grafitsort (RAL 9011)
    3
    BEP0-117-0000 1170 Zinkgul (RAL 1018)
    Grafitsort (RAL 9011)
    3
  • Classic Bollards

    8 Artikler
    CAD Artikel Beskrivelse Bredde (mm) Højde (mm) Farve
    BCP1-035-0000 Pullert 200 350 Zinkgul (RAL 1018)
    BCP0-035-0000 Pullert 200 350 Zinkgul (RAL 1018)
    Grafitsort (RAL 9011)
    1
    BCP1-061-0000 Pullert 200 610 Zinkgul (RAL 1018)
    1
    BCP0-061-0000 Pullert 200 610 Zinkgul (RAL 1018)
    Grafitsort (RAL 9011)
    1
    BCP1-087-0000 Pullert 200 870 Zinkgul (RAL 1018)
    1
    BCP0-087-0000 Pullert 200 870 Zinkgul (RAL 1018)
    Grafitsort (RAL 9011)
    1
    BCP1-116-0000 Pullert 200 1160 Zinkgul (RAL 1018)
    1
    BCP0-116-0000 Pullert 200 1160 Zinkgul (RAL 1018)
    Grafitsort (RAL 9011)
    1

Downloads

Pullerter

Produktinformation

X-Protect Classic Bollards

Monteringsvejledning

X-Protect Essential Bollards

Monteringsvejledning

X-Protect | Kollisionsbeskyttelse

Brochure

X-Protect Technical | Kollisionsbeskyttelse

Brochure

Produktinformation

X-Protect Bollards safeguard corners, doorways and equipment from vehicle impacts. The black and yellow colour scheme enhances visibility and helps direct forklift traffic, creating safer, well-organised industrial routes.

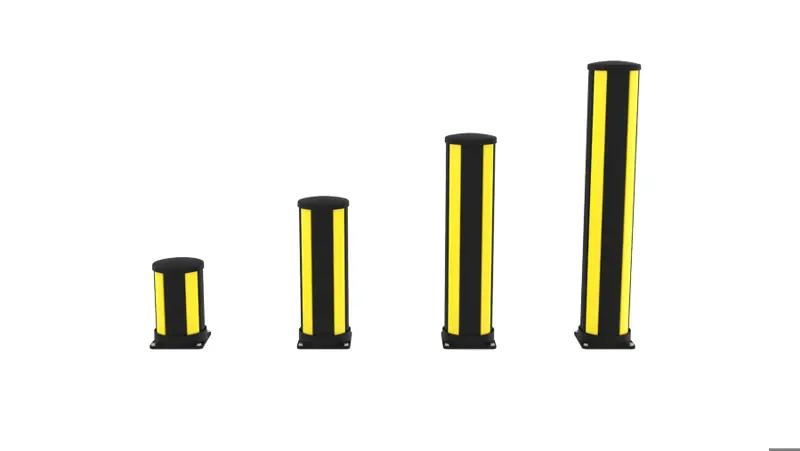

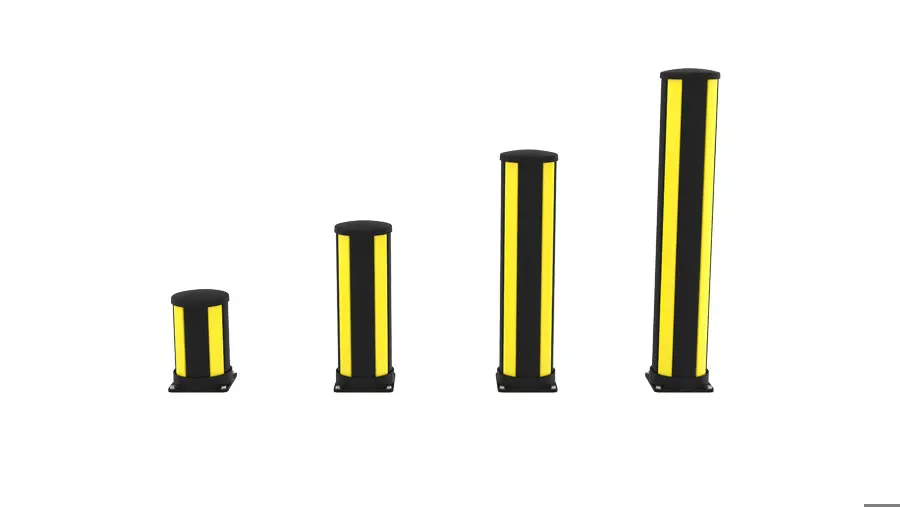

The X-Protect Classic Bollards are built for heavy-duty protection in areas exposed to frequent vehicle movement. Ideal for safeguarding doorways, exposed corners and machinery, they attract attention and help drivers navigate safely along traffic routes. The Classic Bollards are available in four sizes, from 350 to 1160 mm, and can also be seamlessly integrated into the X-Guard Machine Guard System, creating a continuous safety solution across the facility.

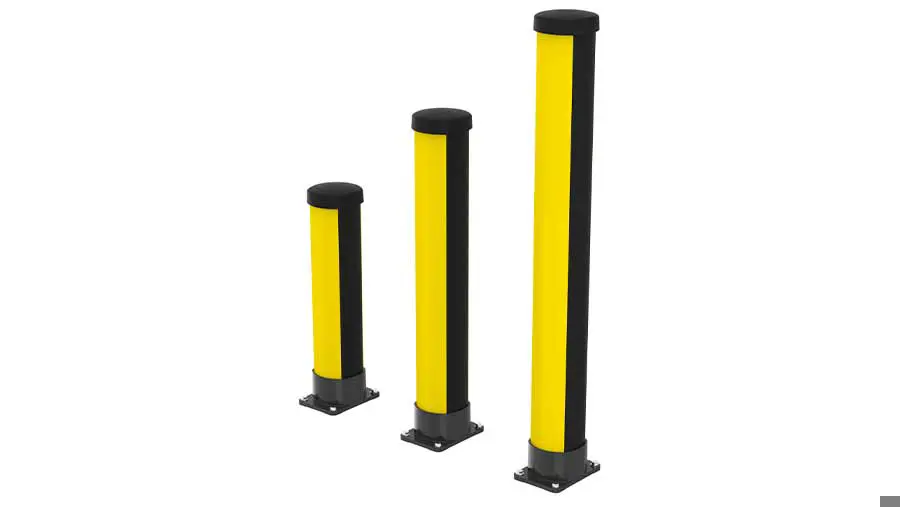

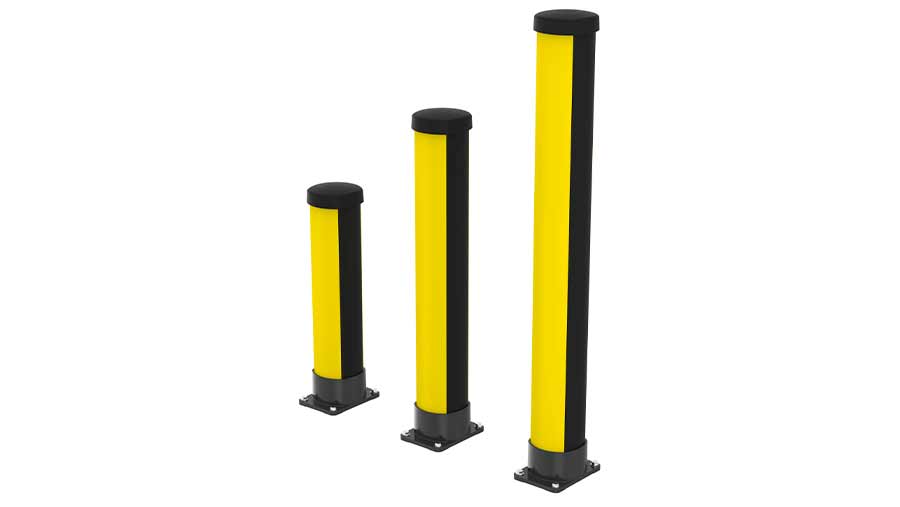

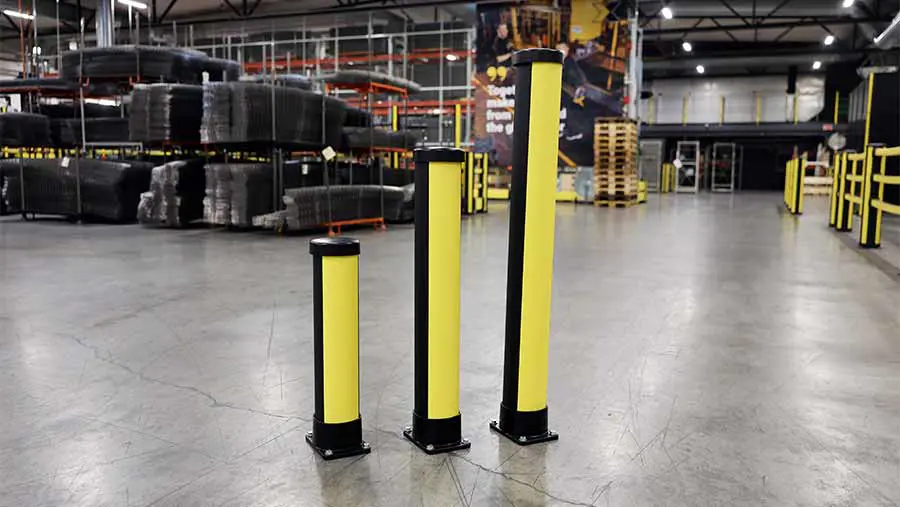

The X-Protect Essential Bollards, by contrast, are designed for light-duty impact zones where flexibility and fast installation are key. They provide dependable ground-level protection against accidental contact from forklifts, AMRs or pallet trucks while maintaining an open layout. Available in four sizes from 620 to 1170 mm, the Essential Bollards allow easy adaptation to different layouts and traffic conditions.

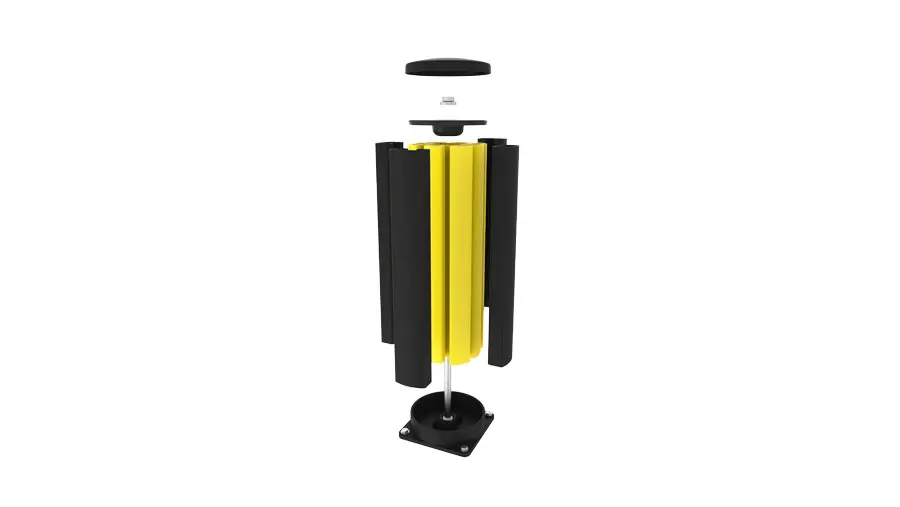

As part of the X-Protect Impact Protection System, both bollard types feature modular components, quick installation and easy maintenance which gives long-term performance with minimal disruption.

Key features

  • Fast to install
  • Kind to the floor
  • Easy to repair



Impact test results
Classic Bollard
Bollard height Load Equivalent to 90° Deflection Force to fixings
350mm 3200 J 2500 kg
5.7 km/h
5000 kg
4 km/h
NA* 18 kN
610mm 5250 J 2500 kg
7.3 km/h
5000 kg
5.2 km/h
300mm 19.5 kN
870mm 5250 J 2500 kg
7.3 km/h
5000 kg
5.2 km/h
420mm 17.5 kN
1160mm 5250 J 2500 kg
7.3 km/h
5000 kg
5.2 km/h
620mm 12 kN
Essential Bollard
Bollard height Load Equivalent to 90° Deflection Force to fixings
620mm 1500 J 2500 kg
3.9  km/h
1500 kg
5 km/h
160mm 5.6 kN
880mm 1500 J 2500 kg
3.9  km/h
1500 kg
5 km/h
380mm 6.4 kN
1170mm 1500 J 2500 kg
3.9  km/h
1500 kg
5 km/h
585mm 4.3 kN
  • Due to the bollard height, it is considered that the deflection is not critical for product selection.
