Essential Pedestrian barriers

Essential Pedestrian with Two Rails

The X-Protect Essential Pedestrian Barrier with Two Rails safely separates pedestrians from vehicles in light-duty areas. It maintains an open layout, creating clear routes and efficient flow while reducing the risk of collisions.

Få dit tilbud nu
Design sikkerhedsløsninger

Design dine sikkerhedsløsninger i vores tegneværktøj, Safety Design

Modeller

  • Posts

    3 Artikler
    CAD Artikel Beskrivelse Højde (mm) CC (mm) Andet
    BCC0-116-00P2 Corner post 1160 2000 Compatible with the Floor Barrier
    1
    BEE0-117-00P2 End post 1170 2000 Compatible with the Floor Barrier
    1
    BEM0-117-00P2 Mid post 1170 2000 Compatible with the Floor Barrier
    1
  • Hand rails

    5 Artikler
    CAD Artikel Beskrivelse Længde (mm) CC (mm)
    RCP1-177-0200 Hand rail extrusion 1170 2000
    1
    RCP1-127-0150 Hand rail extrusion, C-C=1500mm, RAL 1018 yellow 1270 1500
    RCP1-077-0100 Hand rail 770 1000
    1
    RCP1-047-0070 Hand rail 470 700
    1
    RCP1-027-0050 Pasamanos 270 500
    1

Downloads

Essential Pedestrian with Two Rails

Produktinformation

X-Protect | Kollisionsbeskyttelse

Brochure

X-Protect Technical | Kollisionsbeskyttelse

Brochure

Produktinformation

The X-Protect Essential Pedestrian Barrier with Two Rails safely separates pedestrians from vehicles in light-duty areas. It maintains an open layout, creating clear routes and efficient flow while reducing the risk of collisions.

The Essential Pedestrian Barrier with Two Rails offers reliable separation between pedestrians and moving equipment while maintaining an open and accessible layout. Ideal for areas with lower impact risks, the system helps define safe pedestrian routes and supports efficient traffic flow across the facility.

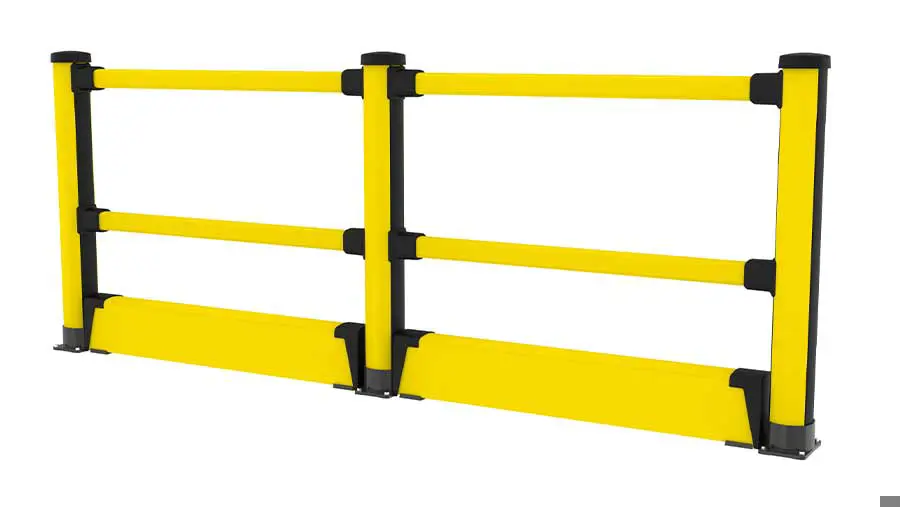

Improve workplace safety by adding the Floor Barrier to your configuration. Designed to create a clear physical boundary between pedestrian walkways and vehicle routes, it offers effective low-level protection in areas with forklift trucks, AMRs and AGVs. By limiting ground-level contact points, it helps reduce damage from forks and pallets while improving overall traffic organisation.

Installation is straightforward, with a low fixing count that speeds up assembly and minimises disruption to floor surfaces.

Key features

  • Fast to install
  • Kind to the floor
  • Easy to repair
Impact test results
Area of impact Load Equivalent to 90° Deflection Force to fixings
Centre of barrier C-C as below
2000mm 1700 J 2500 kg
4.2 km/h
1500 kg
5.4 km/h
385mm 5.1kN
Posts
End post 1300 J 2500 kg
4-6 km/h
1500 kg
4.7 km/h
550mm 4.9kN
Mid post 1300 J 2500 kg
4-6 km/h
1500 kg
4.7 km/h
525mm 4.7kN
