Essential Pedestrian barriers

Essential Pedestrian with three rails

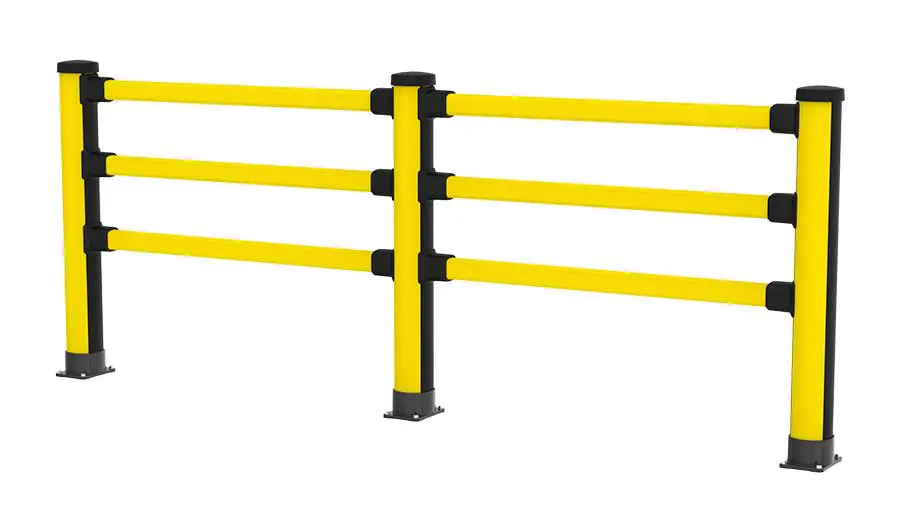

The X-Protect Essential Pedestrian Barrier with Three Rails provides added impact resistance and visibility for safe, well-defined walkways. Ideal for light-duty zones, it enhances separation between people and vehicles while keeping layouts open and efficient.

Få dit tilbud nu
Design sikkerhedsløsninger

Design dine sikkerhedsløsninger i vores tegneværktøj, Safety Design

Modeller

  • Posts

    3 Artikler
    CAD Artikel Beskrivelse Højde (mm) CC (mm) Andet
    BEE0-117-00P3 End post 1170 2000 Compatible with the Floor Barrier
    1
    BEM0-117-00P3 Mid post 1170 2000 Compatible with the Floor Barrier
    1
    BCC0-116-00P3 Corner post 1160 2000 Compatible with the Floor Barrier
    1
  • Hand rails

    5 Artikler
    CAD Artikel Beskrivelse Længde (mm) CC (mm)
    RCP1-177-0200 Hand rail extrusion 1170 2000
    1
    RCP1-127-0150 Hand rail extrusion, C-C=1500mm, RAL 1018 yellow 1250 1500
    RCP1-077-0100 Hand rail 770 1000
    1
    RCP1-047-0070 Hand rail 470 700
    1
    RCP1-027-0050 Hand rail 270 500
    1

Downloads

Essential Pedestrian with three rails

Produktinformation

X-Protect | Kollisionsbeskyttelse

Brochure

X-Protect Technical | Kollisionsbeskyttelse

Brochure

Produktinformation

The X-Protect Essential Pedestrian Barrier with Three Rails provides added impact resistance and visibility for safe, well-defined walkways. Ideal for light-duty zones, it enhances separation between people and vehicles while keeping layouts open and efficient.

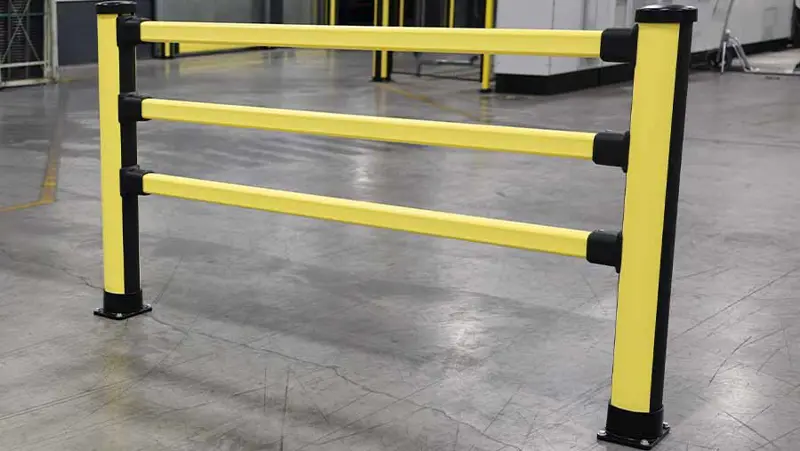

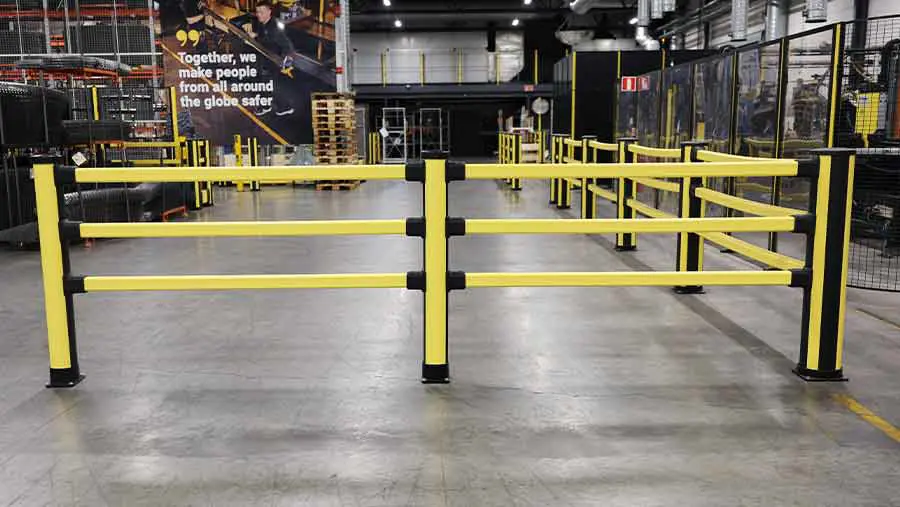

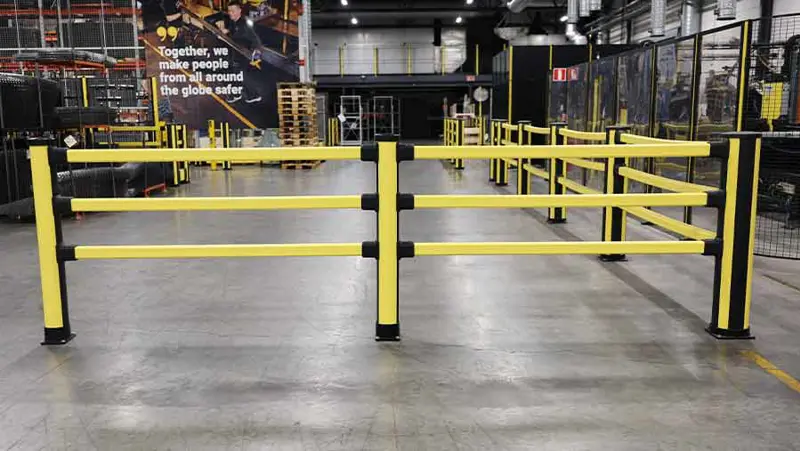

The Essential Pedestrian Barrier with Three Rails provides an enhanced level of protection for areas where additional height and visibility are required. Designed for light-duty impact zones, it creates safe, well-defined walkways while maintaining an open and efficient layout.

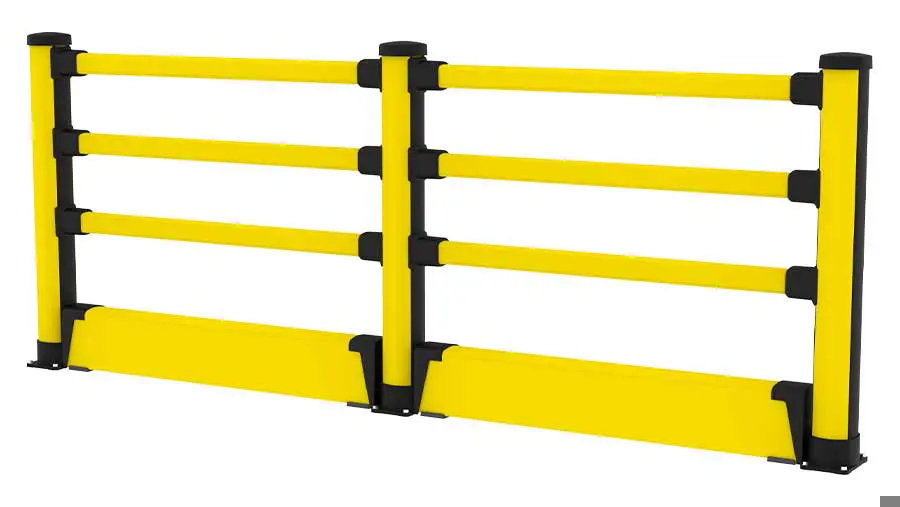

To further improve site safety, the Floor Barrier can be integrated into this configuration. It acts as a solid base element that reinforces the lower section of the system, offering additional protection against ground-level risks such as vehicle forks, pallets and debris. This combination provides a continuous barrier line that enhances both visibility and impact resistance while maintaining smooth traffic flow between zones.

Installation is quick and efficient, with minimal fixings required and no unnecessary stress on the floor surface.

Key features

  • Fast to install
  • Kind to the floor
  • Easy to repair
Impact test results
Area of impact Load Equivalent to  90° Deflection Force to fixings
Centre of barrier C - C as below
1500mm 2000 J 2500kg
4.6 km/h
1500kg
5.9 km/h
334mm 4.2kN
2000mm 2250 J 2500kg
4.8 km/h
1500kg
5.9 km/h
414mm 5.1kN
Posts
End post 1300 J 2500kg
3.7 km/h
1500kg
4.7 km/h
550mm 6.1kN
Mid post 1300 J 2500kg
3.7 km/h
1500kg
4.7 km/h
525mm 5.6kN
