Essential Pedestrian barriers

Essential Pedestrian with Impact High

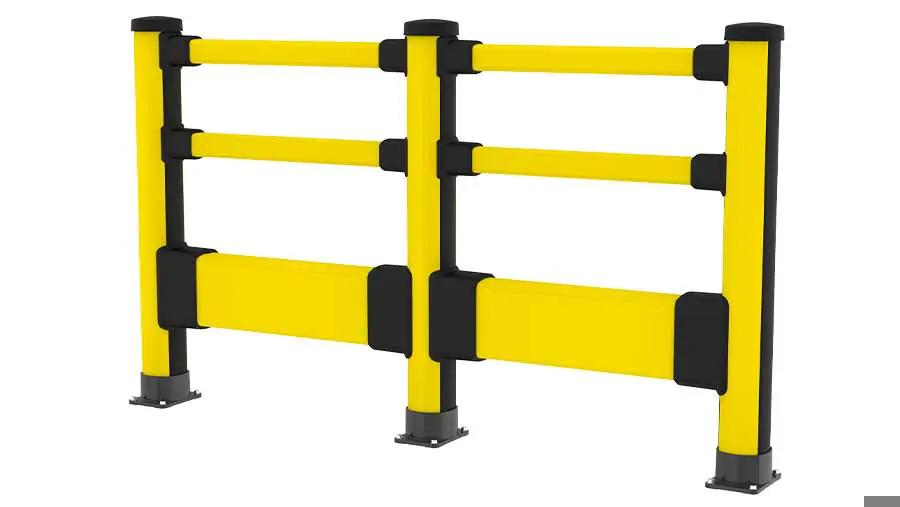

The X-Protect Essential Pedestrian with Impact High Barrier offers reinforced protection in busy traffic zones. Designed to handle low-level impacts, it separates pedestrians from vehicles while maintaining strong, flexible barrier performance.

Få dit tilbud nu
Design sikkerhedsløsninger

Design dine sikkerhedsløsninger i vores tegneværktøj, Safety Design

Modeller

  • Posts

    3 Artikler
    CAD Artikel Beskrivelse Højde (mm) CC (mm) Andet
    BEE0-117-I1P2-A1 End post 1170 2000 Compatible with the Floor Barrier
    1
    BEM0-117-I1P2-A1 Mid post 1170 2000 Compatible with the Floor Barrier
    1
    BCC0-116-I1P2-E2 Corner post 1160 2000
    1
  • Impact rails

    7 Artikler
    CAD Artikel Beskrivelse Længde (mm) CC (mm)
    RCI1-277-0300 Impact rail 2770 3000
    1
    RCI1-227-0250 Impact rail 2270 2500
    1
    RCI1-177-0200 Impact rail 1770 2000
    1
    RCI1-127-0150 Impact rail 1270 1500
    1
    RCI1-077-0100 Impact rail 770 1000
    1
    RCI1-047-0070 Impact rail 470 700
    1
    RCI1-027-0050 Impact rail 270 500
    1
  • Hand rails

    5 Artikler
    CAD Artikel Beskrivelse Længde (mm) CC (mm)
    RCP1-177-0200 Hand rail 1770 2000
    1
    RCP1-127-0150 Hand rail 1270 1500
    RCP1-077-0100 Hand rail 770 1000
    1
    RCP1-047-0070 Hand rail 470 700
    1
    RCP1-027-0050 Hand rail 270 500
    1

Downloads

Essential Pedestrian with Impact High

Produktinformation

X-Protect | Kollisionsbeskyttelse

Brochure

X-Protect Technical | Kollisionsbeskyttelse

Brochure

Produktinformation

The X-Protect Essential Pedestrian with Impact High Barrier offers reinforced protection in busy traffic zones. Designed to handle low-level impacts, it separates pedestrians from vehicles while maintaining strong, flexible barrier performance.

The Essential Pedestrian with Impact High Barrier provides reinforced safety for walkways exposed to medium-duty vehicles and frequent ground-level impacts. Designed for combined strength and flexibility, it separates pedestrians from vehicles while absorbing impact energy at the base to minimise damage and maintain barrier integrity.

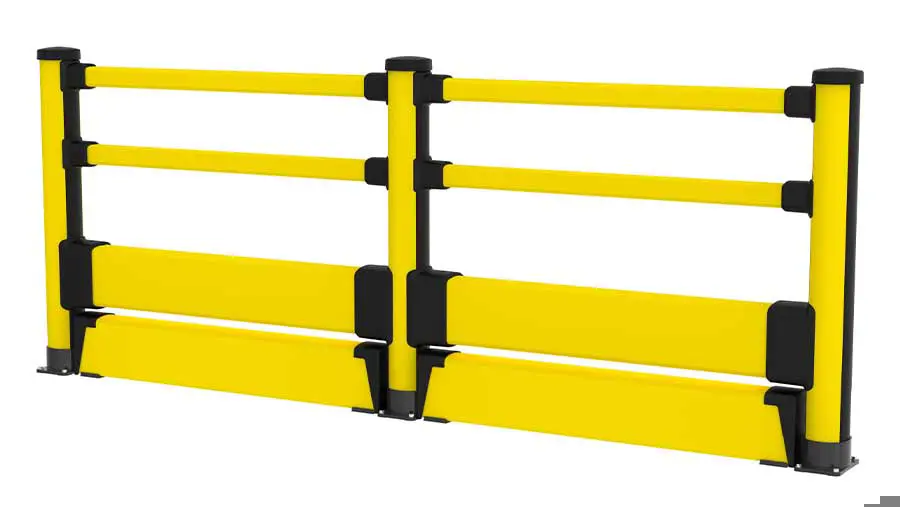

For areas with intensive material handling, the Floor Barrier adds an extra layer of protection. Positioned at ground level, it ensures a clear division between pedestrian and vehicle routes, preventing contact with vehicle forks, low pallets or stray objects. Acting as a robust foundation, it complements the higher structure by distributing impact forces efficiently and maintaining safe, predictable traffic patterns throughout the facility.

Installation is fast and straightforward, with minimal fixings and a design that protects the floor surface during both setup and maintenance.

Key feature

  • Fast to install
  • Kind to the floor
  • Easy to repair
Impact test results
Area of impact Load Equivalent to 90° Defelction Force to fixings
Centre of barrier C - C as below
2000mm 3100 J 2500kg
5.7 km/h
1500kg
7.3 km/h
295mm 5.7kN
Posts
End post 1500 J 2500kg
3.9 km/h
1500kg
5 km/h
500mm 3.2kN
Mid post 1500 J 2500kg
3.9 km/h
1500kg
5 km/h
450mm 3.3kN
