Lagerrum med net

Solid + (FK+)

3D

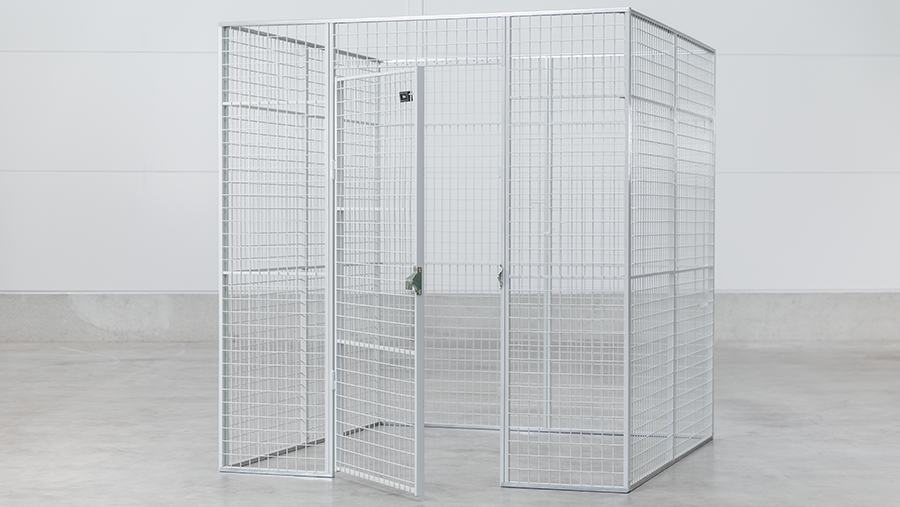

SSF testing and approval now provides proof that Axelent’s FK+ storeroom system can meet the toughest challenges. FK+ uses reinforced hinges, lock fittings, doors and walls. Security provided by Axelent!

Få dit tilbud nu
Design sikkerhedsløsninger

Design dine sikkerhedsløsninger i vores tegneværktøj, Safety Design

Modeller

  • 2 Artikler
    CAD Artikel Beskrivelse Bredde (mm) Højde (mm)
    45-42259002 Door (right) 900 2250
    3
    45-42259003 Door (left) 900 2250
    3
  • Lock solutions

    1 Artikler
    CAD Artikel Beskrivelse
    34-000262 Extra reinforced padlock fitting with cover (standard)
    1
  • 10 Artikler
    CAD Artikel Beskrivelse Bredde (mm) Højde (mm)
    45-2020 Wall section 200 2250
    1 3
    45-2025 Wallsection 250 2250
    3
    45-2035 Wall section 350 2250
    3
    45-2040 Wall section 400 2250
    3
    45-2055 Wall section 550 2250
    3
    45-2060 Wall section 600 2250
    3
    45-2080 Wall section 800 2250
    2 3
    45-2100 Wall section 1000 2250
    3
    45-2110 Wall section 1100 2250
    3
    45-2120 Wall section 1200 2250
    1 3
  • 3 Artikler
    CAD Artikel Beskrivelse Bredde (mm)
    34-00110 Number badge, (exist as accessories)
    2
    34-00120 Shelf, double mounting (exist as accessories) 400
    1 3
    34-00130 Shelf, single mounting, (exist as accessory) 400
    1 3

Downloads

Storeroom type FK+

Produktinformation

Storeroom roof

Monteringsvejledning

Storeroom mesh

Monteringsvejledning

Axelent | Storeroom

Brochure

Storeroom Technical information

Produktinformation

Produktinformation

SSF testing and approval now provides proof that Axelent’s FK+ storeroom system can meet the toughest challenges. FK+ uses reinforced hinges, lock fittings, doors and walls. Security provided by Axelent!



  • Extra hinge and lock fitting reinforcement.
  • Extra door and wall design reinforcement.
  • Can be combined with F and FP systems.
  • Can be cut and adapted to existing building dimensions.
  • Can be fitted with ceiling at heights above 3.5 metres.
  • The walls are painted RAL 9018.
  • Tested and approved according to the SSF's standard for burglary resistant storage rooms.
Product facts
Product Size (mm) Description
Vertical tubes 30x20 Tubular steel frame, wall
Horizontal tubes 25x15 Tubular steel frame, wall
Vertical tubes 40x20 Tubular steel frame, door
Horizontal tubes 35x15 Tubular steel frame, door
Vertical wires Ø 5 Steel mesh
Horizontal wires Ø 5 Steel mesh
Dimensions 50x65
45-4225900(1) 2000x860 Door opening dimensions





Axelent burglar-resistant storeroom walls system FK+ satisfies the requirements of the Swedish Theft Prevention Association.
