Storeroom

Standard (F)

3D

Our Axelent Standard (F) storeroom system definitely belongs among our top sellers as the strength and security that this provides is often adequate enough. We have prepared for everything to run as smoothly as possible already at the design stage when the walls are on site and are to be installed.

Få dit tilbud nu

Country

Modeller

Downloads

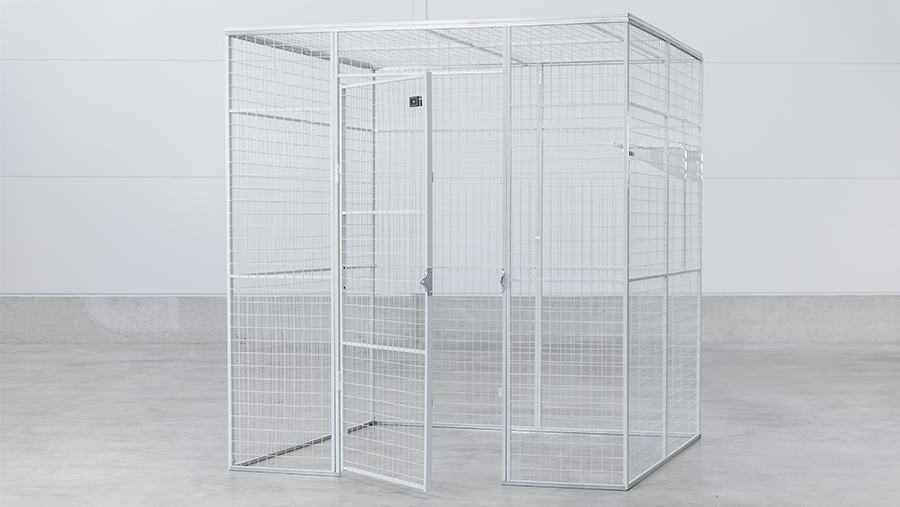

Storeroom type F

Produktinformation

Tekniske specifikationer

Our Axelent Standard (F) storeroom system definitely belongs among our top sellers as the strength and security that this provides is often adequate enough. We have prepared for everything to run as smoothly as possible already at the design stage when the walls are on site and are to be installed.

• With extra robust tubular construction in the doors.
• Can be combined with the FK and FP systems.
• Can be cut to suit existing construction.
• Can be supplied with a roof for ceiling heights exceeding 3.5 metres.
• The walls are painted in RAL 9018.



Product facts
Product Size (mm) Description
Vertical tubes 19x19 Tubular steel frame, door
Horizontal tubes 15x15 Tubular steel frame, wall
Vertical tubes 30x20 Tubular steel frame, door
Horizontal tubes 25x15 Tubular steel frame, door
Vertical wires Ø 3 Steel mesh
Horizontal wires Ø 2,5 Steel mesh
Dimensions 50x65
30-4225750(1) 2000x710 Door opening dimensions
30-4275900(1) 2000x860 Door opening dimensions
